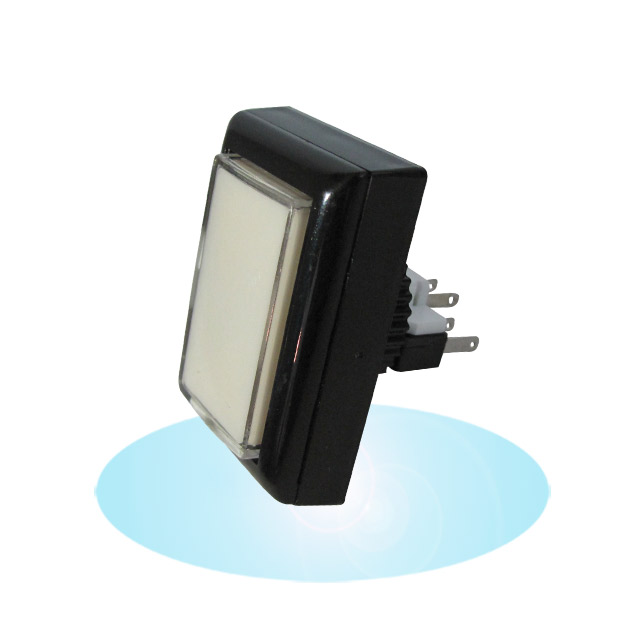

S951-4

• Microswitch, silver contact,. 110 terminal fit-ted as standard.
• Insert the lampholder into the button bezel, make sure the tab on the bezel aim at the notch on the lampholder
• Microswitch GOLD contact,. 110 terminal optional.
• Twist the lampholer until it locks.
• T-1 1/2 incandescent.
• To avoid the jamming problem of assembling, please don't push the button while twist the lampholder.
