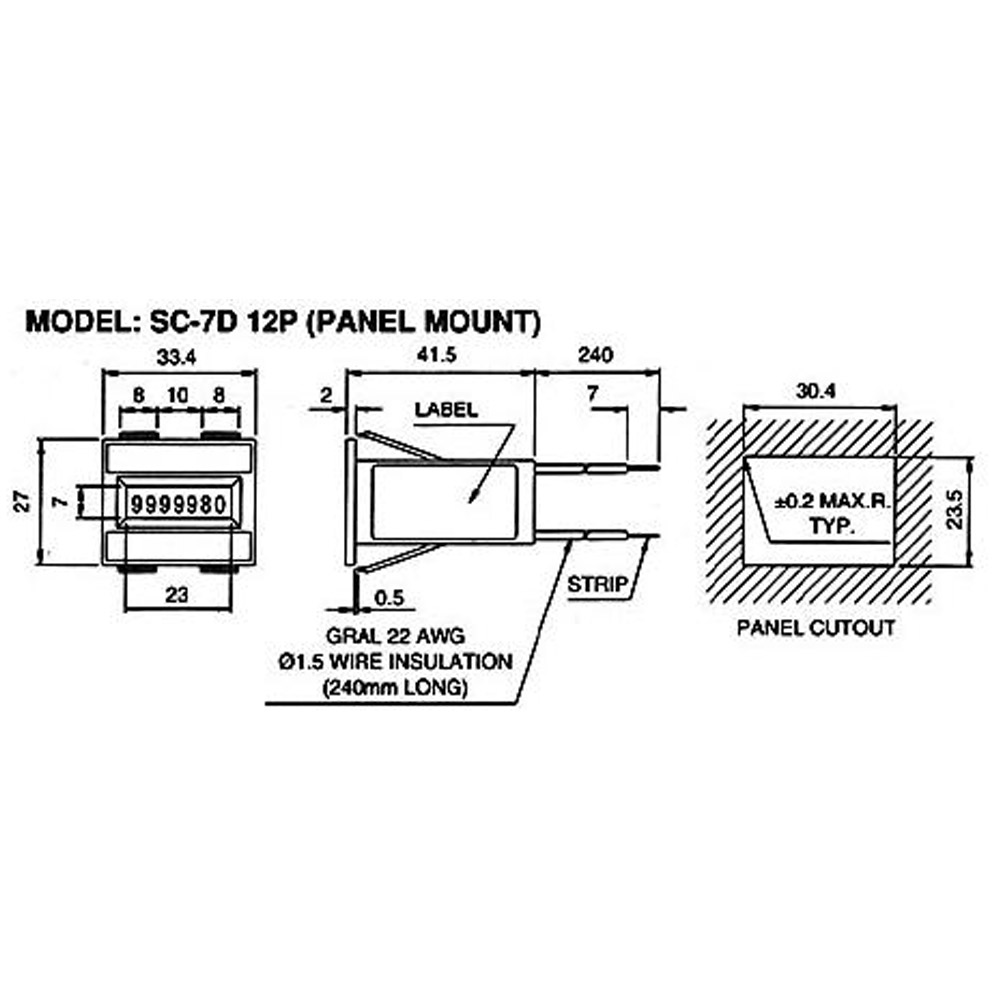

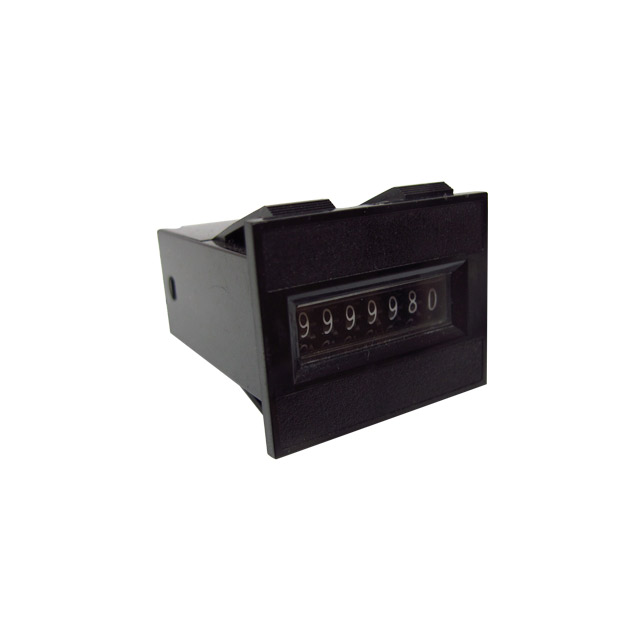

SC-7D 12P

Inquiry
Prev Prev
Next Next
Product Specification
1 12V Type:F, P, S, T,M Voltage Tolerance ±10%
2 Counter Reading 999980(6 digits) Power Consumption 1.8W
3 Counter Speed 15CPS(Max 20 CPS) Pulse Length 50Ms Minimum
4 Count Input Contact(Pulse) Service Life 1,000,000cycles
5 Operating Voltage 12VDC at 25°C Weight 25Grams
6 Releasing Voltage Min 2VDC at 25°C Reset None
